SPECTRAL
ANALYSIS OF BNG RECORD
OF
MAY 1, 2003 BİNGÖL (TURKEY) EARTHQUAKE
|
MAIN SHOCK
ACCELERATION TIME HISTORIES (N-S,E-W,U-D components)
![](BNGacc2.jpg)
|
MAIN SHOCK
VELOCITY TIME HISTORIES (N-S,E-W,U-D components)
![](BNGvel2.jpg)
|
MAIN SHOCK
DISPLACEMENT TIME HISTORIES (N-S,E-W,U-D components)
![](BNGdis.jpg)
|
MAIN
SHOCK,GROUND ACCELERATION FOURIER AMPLITUDE SPECTRA
(N-S,E-W components)
![](BNGfas1-2.jpg)
|
5% DAMPED
ACCELERATION RESPONSE SPECTRA (N-S,E-W components)
![](BNGsa1-2.jpg)
|
TRIPARTITE
RESPONSE SPECTRA FOR VARIOUS DAMPING LEVELS
(N-S component)
![](BNGpsv1.jpg)
|

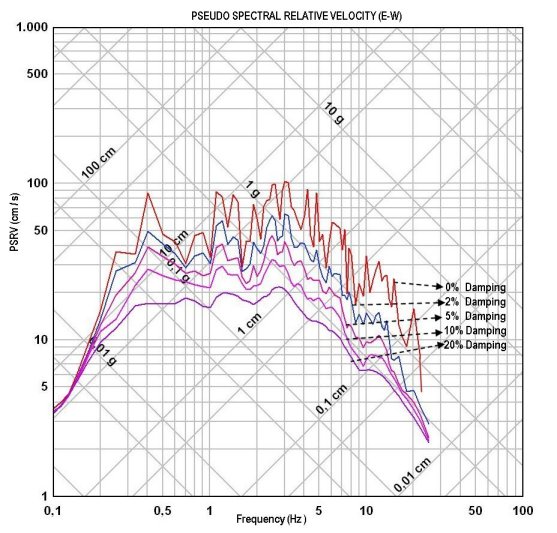

TRIPARTITE
RESPONSE SPECTRA FOR VARIOUS DAMPING LEVELS
(E-W component)
|
INELASTIC
CONSTANT DUCTILITY AND STRENGTH BASED RESPONSE SPECTRA (N-S
component)
|
The following spectra were drawn with the KOERINON software (Aydinoglu
and Fahjan, 2003*)
![](bngsay.jpg)
|
![](bngsay.jpg)
|
![](bngsdi.jpg)
|
![](bngc1.jpg)
|
